Via Dark-Sky
Available from 5W-14W

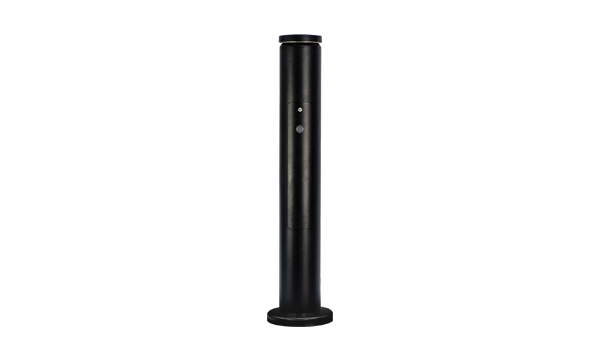

Via – a contemporary, highly robust and optically refined LED bollard with an abundance of features to overcome “real world” issues and problems.
An asymmetric footpath distribution, available in either 1750K (PC-Amber), 2700K or 3000K colour temperatures, is contained within the universal, modular IP66, IK10 head unit. Integral photocell switching as well as standard mains switching is available and can even be retrofitted at a later stage if required.
Furthermore, when the vandal resistant access door is removed, it exposes sufficient space on an integral wooden back board to mount all necessary DNO cut outs and isolators. The ability to interface with in ground “sockets” as well as standard root and flange mounting methods, provides a totally universal single product for multiple applications with maximum flexibility build in as standard.
International Dark-Sky Association approved. Compliant when using a colour temperature of 3000K or below.
-
l
Electrical Class -
IK10
Impact Resistance -
IP66
Ingress Protection -
LED
Light Source -
45°C
Maximum Ambient -
-20°C
Minimum Ambient -
10.5kg
Weight
Contact us
Get in touch
Contact us for a quote today
Discover our exterior lighting solutions designed for energy efficiency and sustainability. Request a comprehensive quote tailored to your project needs today.
Downloads
-
Item one
Via Dark-Sky Datasheet
.pdf | 644.24 KB
-
Item two
Via Dark-Sky Positioning For Installation
.pdf | 157.72 KB
-
Item three
Via Dark-Sky Installation Leaflet
.pdf | 886.86 KB
-
Item four
Via Dark-Sky - Dark Sky Certificate
.pdf | 586.54 KB
-
Item five
Via Dark-Sky FAB Sheet
.pdf | 96.12 KB
-
Item six
Via Family Brochure
.pdf | 2.54 MB
Photometry
TRT Lighting supports, promotes and uses Lighting Reality for all road lighting calculations.
Photometric Database
Our complete photometric database is available for use within this industry standard lighting design package which is available for download from www.lightingreality.com
Specification
Specification
- LED colour temperature PC-Amber*, 2700K or 3000K
- Colour rendering index >70 (*>55)
- Projected L85 after 100,000 hours
- Power factor 0.95 at full load
- Polyester powder coat finish in light grey, dark grey, black or a bespoke colour
- High pressure die cast LM6 aluminium and high quality extruded 6063T6 aluminium housing
- UV stabilised polycarbonate lens
- In-built ventilation (breather) plug for pressure equalisation
- CLO available
- Optional Miniature Photocell available
- Part Night Dimming (PND)
- DALI compatible for use with CMS
- Optional surge protection 10kV/10kA
- Optional non-fused or fused isolators available
- Feeder pillar version available
- Root, socket or flange mount
- Anti-tamper door fixing as standard
- EN40 compliant door location, size and cable entry slots
- UMSUG codes available for full product range
Range Overview
| Via Dark-Sky | |
|---|---|
| System Power | 5-14W |
| LED CCT | PC-Amber*, 2700K or 3000K |
| Lumen Output | Up to 700lm |
| LED CRI | >70 (*>55) |
Shield Options
| 180o Shield | 04GSK71725 |
| 240o Shield | 04GSK71899 |
Electrical Characteristics
| Via Dark-Sky | |
|---|---|
| System Power | 5-14W |
| LED CCT | PC-Amber*, 2700K or 3000K |
| LED CRI | >70 (*>55) |
| Lumen Output | Up to 700lm |
| Lumen Maintenance | Projected L85 after 100,000 hours |
| Drive Current | 160-510mA |
| Driver Output | Constant current output with AM dimming |
| Power Factor (Full Load/Half Load) |
0.95/0.90 |
| Operational Voltage | 220-240VAC rms |
| Operating Frequency | 50/60Hz |
| Inrush Current (Apk/50%-µS) |
25A/150µS |
| Running Current (Max) |
60mA |
| Surge Protection (COM/DIF) |
10kV/6kV |
| Additional Surge Protection (On Request) |
10kV/10kA |
| Lighting Controls Options | Miniature Photocell, PND and CMS compatible |
| Dimming Protocols | DALI |
Mechanical Characteristics
| Housing Material | High pressure die cast LM6 aluminium and high quality extruded 6063T6 aluminium |
| Housing Finish | Chromate free pre-treatment, polyester powder coat, light grey (RAL9006), dark grey (RAL7022), black (RAL9005) or bespoke colours on request |
| Lens Material | UV stabilised polycarbonate |
| Ingress Protection Rating | IP66 |
| Weight | 10.5kg |
| Impact Resistance Rating | IK10 |
| Mounting Methods | Root, socket or flange mounted |
