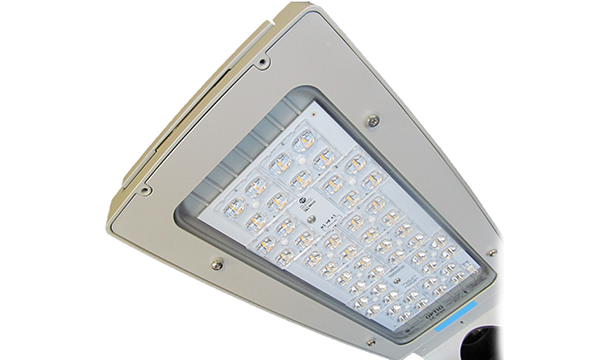

Optio Midi
Available from 40W-100W
The Optio Midi has been specifically designed to provide highly efficient illumination for multiple road lighting applications covering residential, traffic route, conflict area and floodlighting applications. All centred around an easy access gear compartment and utilising our patented ‘MountSet’ universal mounting feature. A toughened flat glass cover on the underside, combined with a vast range of LED colour temperatures, optical distributions and light shields ensures that any lighting scheme can be optimised whilst also providing a true zero upward light luminaire. Illumination for zebra crossings can also be achieved by using our zebra optics.
View the Optio Midi Zebra
PowerSet feature available; field adjustable, integral power output selection device.
International Dark-Sky Association approved. Compliant when using a colour temperature of 3000K or below at zero degree tilt.
Mounting Options
Post Top Mounting Demonstration
Side Entry Mounting Demonstration
-
I
Electrical Class -
IK08
Impact Resistance -
IP66
Ingress Protection -
LED
Light Source -
30°C
Maximum Ambient -
-20°C
Minimum Ambient -
7kg
Weight -
0.06m²
Wind Area
Contact us
Get in touch
Contact us for a quote today
Discover our exterior lighting solutions designed for energy efficiency and sustainability. Request a comprehensive quote tailored to your project needs today.
Photometry
TRT Lighting supports, promotes and uses Lighting Reality for all road lighting calculations.
Photometric Database
Our complete photometric database is available for use within this industry standard lighting design package which is available for download from www.lightingreality.com
Specification
Specification
- LED colour temperature PC-Amber*, 2200K, 2700K, 3000K, 4000K (or 5700K Zebra only)
- Colour rendering index > 70 (*>55)
- Projected L90 after 100,000 hours
- Power factor >0.95 at full load
- Polyester powder coat finish in light grey, dark grey, black or a bespoke colour
- High quality high pressure die cast LM6 aluminium components
- Stainless steel fixing screws with stainless steel inserts in pivot
- Toughened flat safety glass cover
- In-built ventilation (breather) plug for pressure equalisation
- Replaceable gear tray
- CLO available
- PowerSet feature – Field adjustable, integral power output selection device (optional)
- Controls – NEMA 3, 7, Miniature Photocell and Zhaga Book 18 (SR) socket
- Part Night Dimming (PND) with manual dimming override option
- DALI compatible for use with CMS
- Optional surge protection 10kV/10kA
- MountSet (patent granted) – Universal mounting system to interface with multiple column/bracket diameters or length
- Luminaire levelling indicator
- UMSUG codes available for full product range
Range Overview
| Optio Midi | |
|---|---|
| System Power | 40-100W |
| Road Optics | |
| Area Optics | |
| LED CCT | PC-Amber*, 2200K, 2700K, 3000K or 4000K |
| Lumen Output | Up to 15,915lm |
| LED CRI | >70 (*>55) |
Shield Options
| Universal Front/Rear | 83BAF71375 |
| Side | 83BAF71374 |
Electrical Characteristics
| Optio Midi & Optio Midi Zebra | ||||
|---|---|---|---|---|
| System Power | 40-100W | |||
| LED CCT | PC-Amber*, 2200K, 2700K, 3000K, 4000K (or 5700K Zebra only) | |||
| LED CRI | >70 (*>55) | |||
| Lumen Output | Up to 15,915m | |||
| Lumen Maintenance | Projected L90 after 100,000 hours | |||
| Drive Current | 260-695mA | |||
| Driver Output | Constant current output with AM dimming | |||
| Power Factor (Full Load/Half Load) |
0.95/0.90 | |||
| Operational Voltage | 220-240VAC rms | |||
| Operating Frequency | 50/60Hz | |||
| Inrush Current (Apk/50%-µS) |
62A/330µS | |||
| Running Current (Max) |
460mA | |||
| Surge Protection (COM/DIF) |
8kV/6kV | |||
| Additional Surge Protection (On Request) |
10kV/10kA | |||
| Lighting Controls Options | NEMA 3, 7, Miniature Photocell, Zhaga Book 18 (SR) Socket, PND and CMS compatible | |||
| Dimming Protocols | DALI | |||
Mechanical Characteristics
| Housing Material | High pressure die cast LM6 aluminium |
| Housing Finish | Chromate free pre-treatment, polyester powder coat, light grey (RAL9006), dark grey (RAL7022), black (RAL9005) or bespoke colours on request |
| Cover Material | Toughened flat safety glass |
| Lens Material | PMMA |
| Ingress Protection Rating | IP66 |
| Weight | 7kg |
| Wind Area | 0.06m² |
| Impact Resistance Rating | IK08 |
| Mounting Methods | Post top 60mm or 76mm Side entry 34mm, 42mm, 60mm or 76mm |
| Mounting Inclination | -10°, -5°, 0°, 5°, 10° |
| Photometric Centre | 300mm (to centre of PCB) |
