NEW Aspect Gen2

Available from 37W-307W

Developed after 12 years of success with Aspect Gen1, the new Aspect Gen2 represents a new standard in street lighting.

Embracing industry, market, and technology advancements over the past decade, this family provides versatility and greater efficiency.

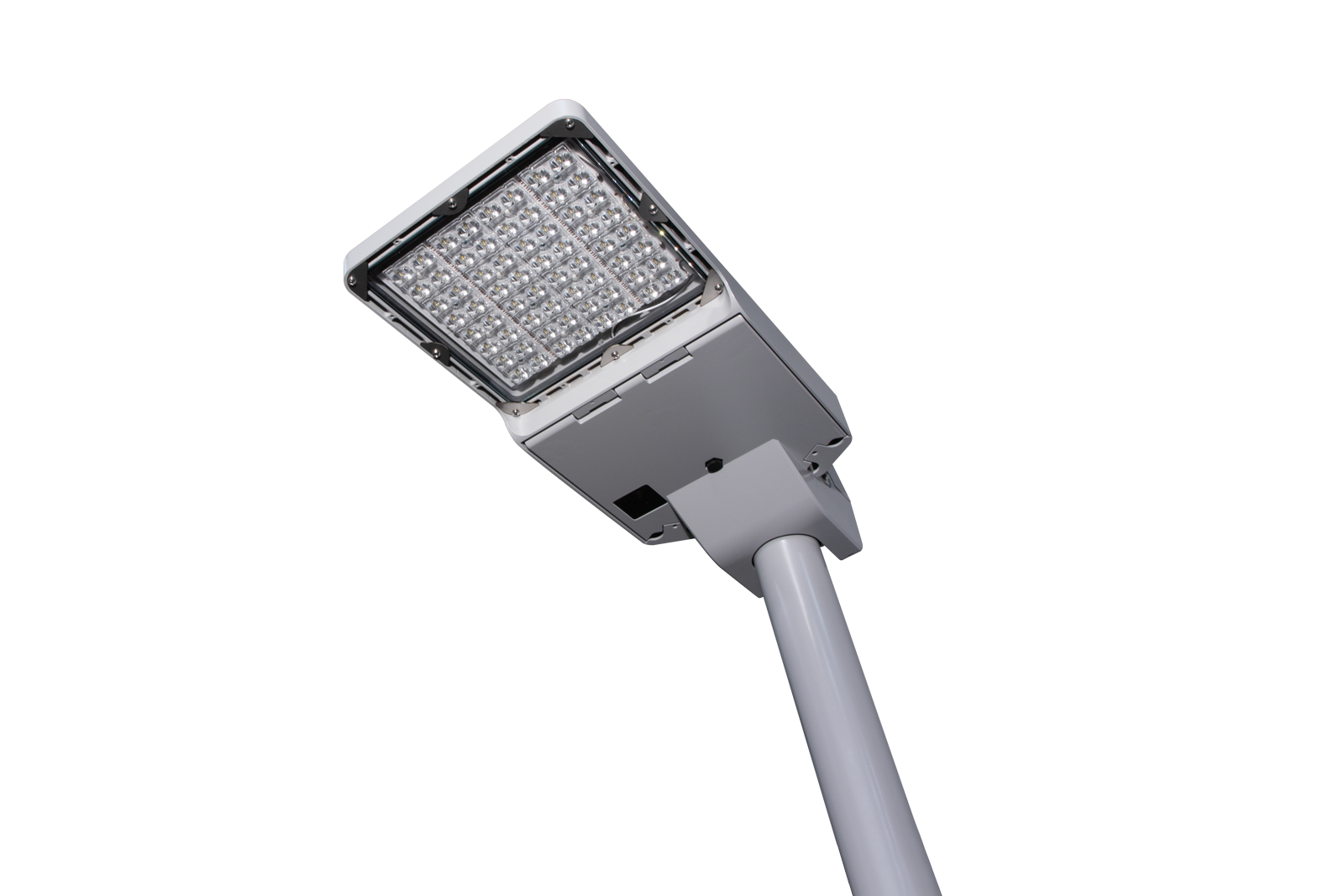

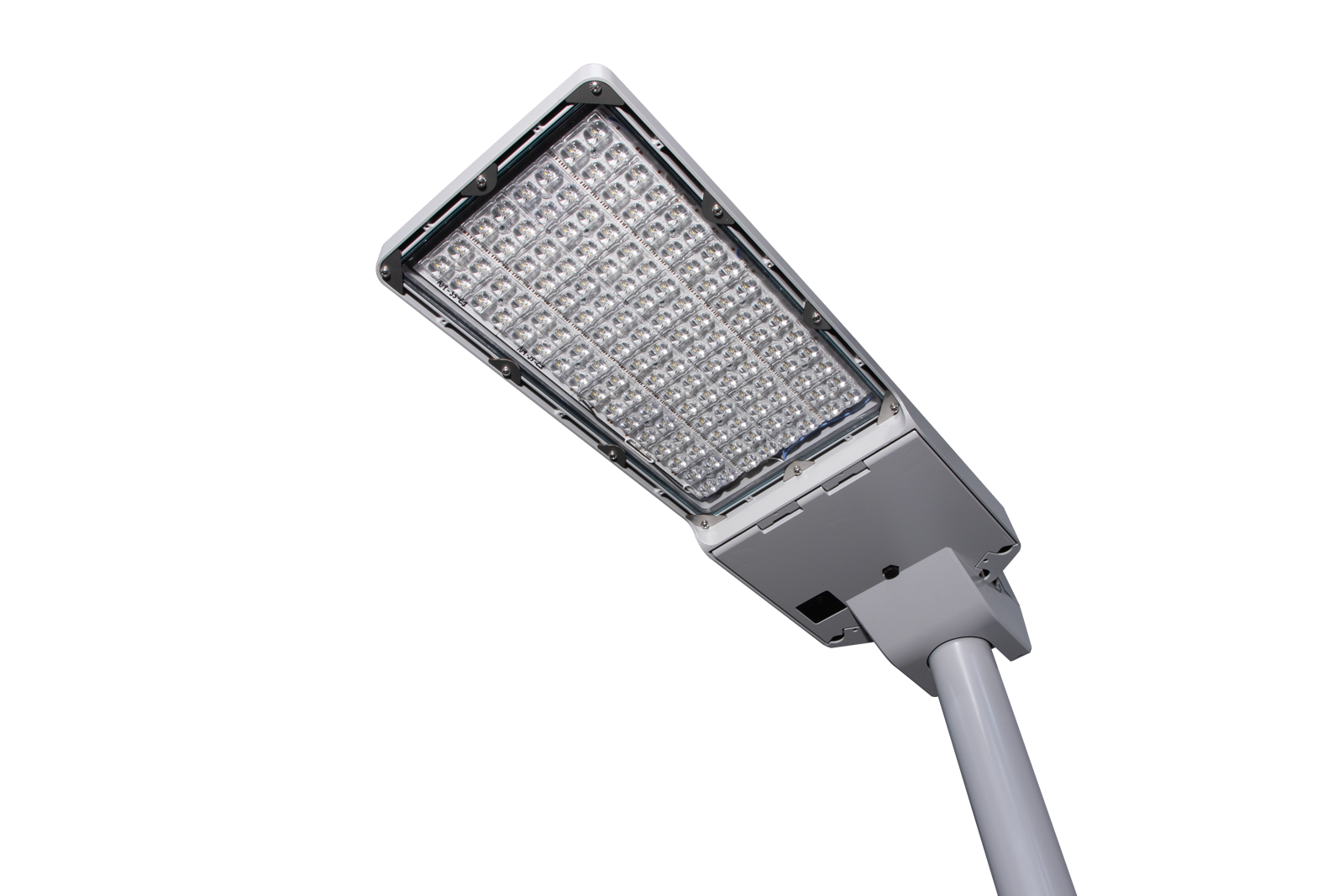

Available in four sizes – 32, 64, 96, and 128 LEDs – the Aspect Gen2 range is adaptable to various lighting requirements. The two larger models are particularly suited for highways, providing robust and reliable illumination.

With CCTs ranging from PC-Amber to 5700K, the Aspect Gen2 provides lighting solutions for various applications, from Dark Sky environments to high-visibility areas such as zebra crossings.

The lantern’s innovative design incorporates a high transmission, flat glass cover, which improves LED efficiency and optimises light emissions, achieving up to 204 LL/CW.

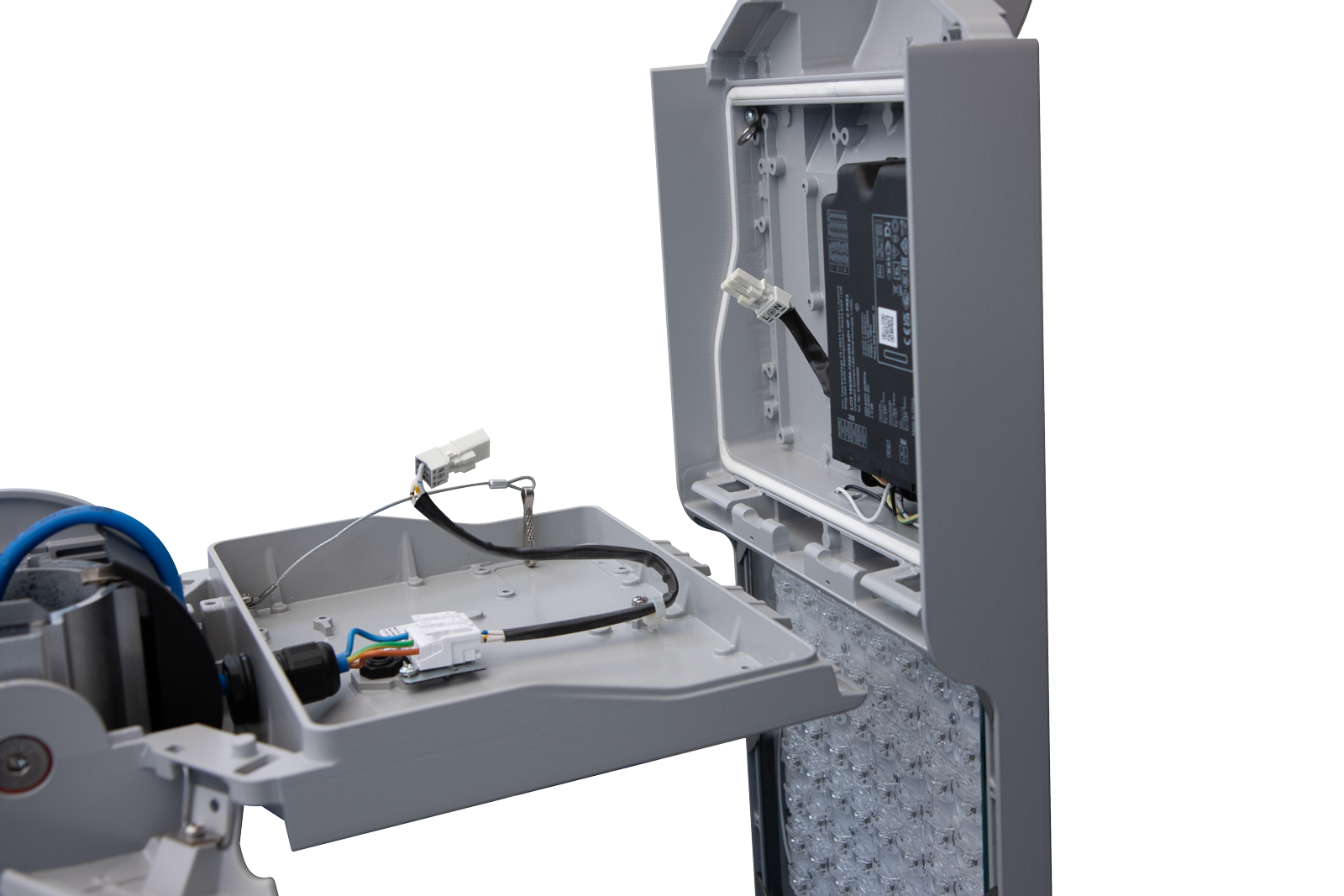

Aspect Gen2 features a universal mounting system and pull-down latches for tool-free access, streamlining installation and maintenance. Interchangeable heads, designed to seamlessly hinge into place, ensure effortless replacements and upgrades.

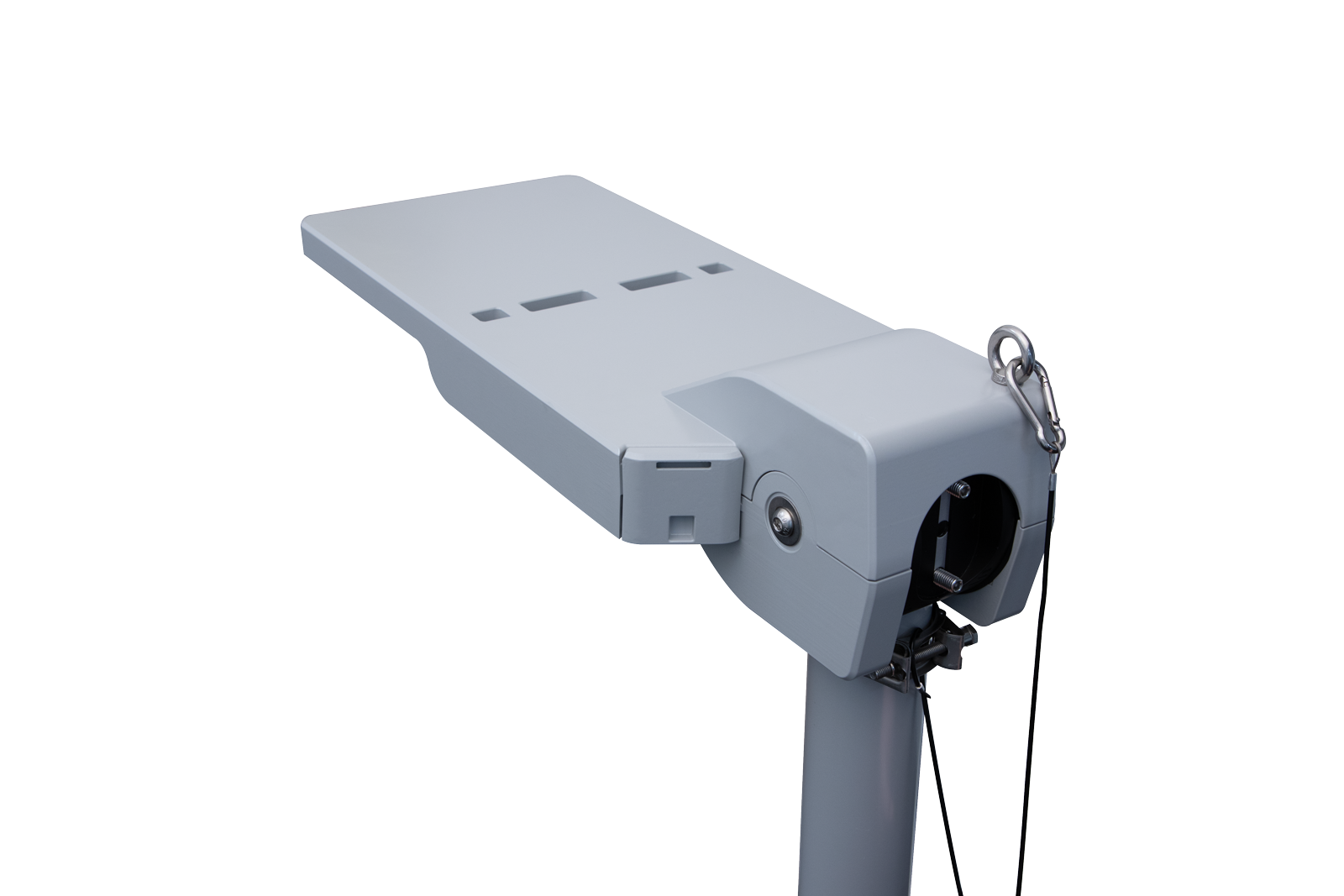

Optional extras including Lumi-LinQ, shields, National Highways tether and a marine grade finish allow you to tailor your lanterns further.

Powerset Logo

PowerSet feature available; field adjustable, integral power output selection device.

Powerset NFC Logo

PowerSet NFC feature integrated as standard (field adjustable power output)

Darksky Logo

International Dark-Sky Association approved. Compliant when using a colour temperature of 3000K or below at zero degree tilt.

Specifications
https://www.trtlighting.co.uk/wp-content/uploads/2023/08/cta-bg.jpg

Contact us

Get in touch

Contact us for a quote today

Discover our exterior lighting solutions designed for energy efficiency and sustainability. Request a comprehensive quote tailored to your project needs today.

Get a Quote

Downloads

Photometry

TRT Lighting supports, promotes and uses Lighting Reality for all road lighting calculations.

Photometric Database

Our complete photometric database is available for use within this industry standard lighting design package which is available for download from www.lightingreality.com

Specification

Specification

  • LED colour temperature of PC-Amber*, 2200K, 2700K, 3000K, 4000K (or 5700K Zebra only)
  • Colour rendering index >70 (*>48)
  • Projected L90 after 100,000 hours
  • Power factor 0.95 at full load
  • 1000 hours salt spray compliant, polyester powder coat finish in light grey, dark grey, black or a bespoke colour
  • Marine grade high pressure die cast LM6 aluminium components
  • Stainless steel fixing screws with stainless steel inserts in pivot
  • Toughened ultra efficient safety glass cover (polycarbonate cover optional)
  • Quick release canopy for ease of upgrade
  • Lumi-LinQ wireless exterior lighting control system (optional)
  • Controls – NEMA 7, Zhaga Book 18 (SR) socket (top and/or bottom) and Photocell
  • CLO available
  • PowerSet NFC for external programming of power output, CLO and dimming regimes (manual version available)
  • Part Night Dimming (PND) with manual dimming override option
  • Dim level 10-100%
  • DALI compatible for use with CMS
  • Optional surge protection 10kV/10kA

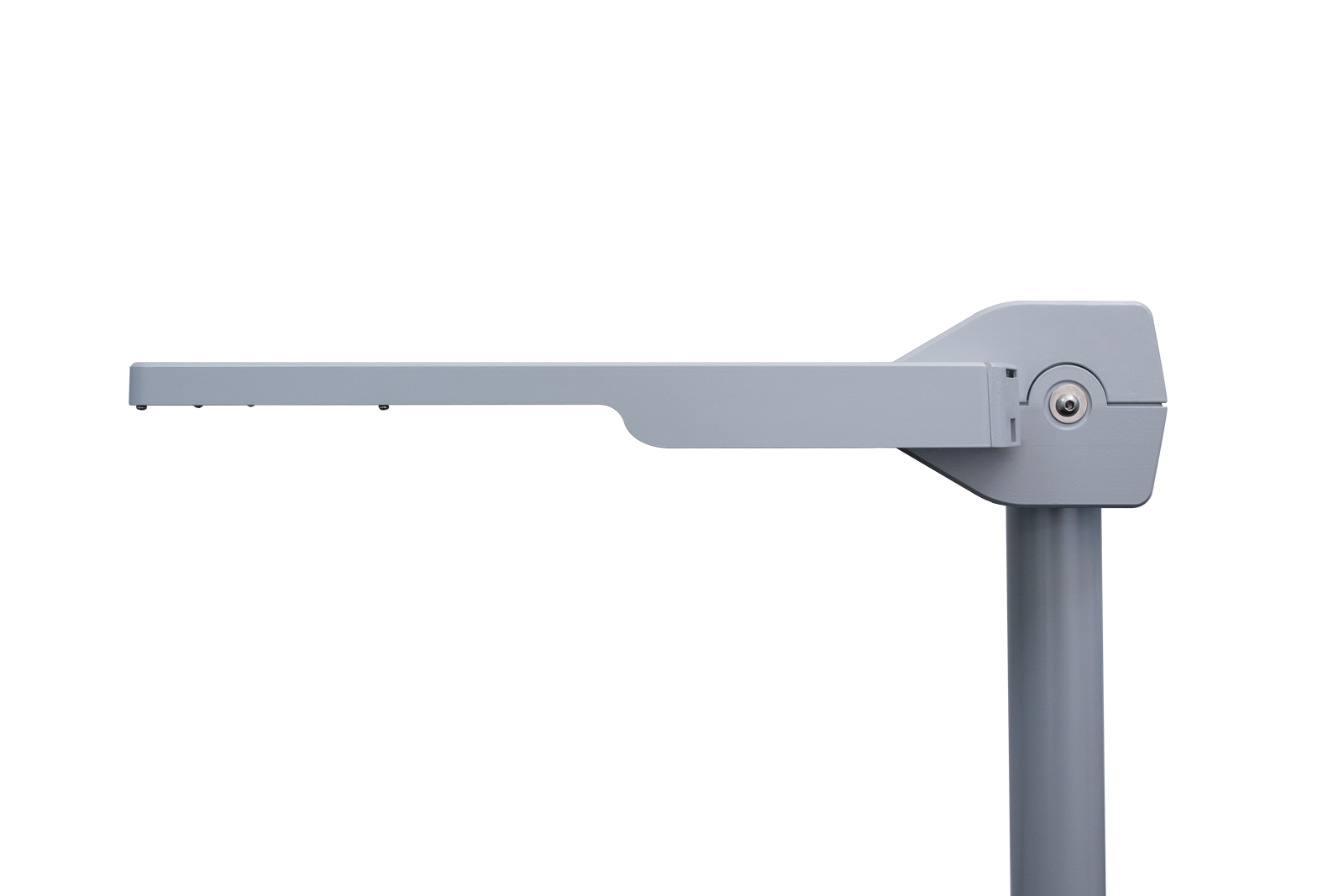

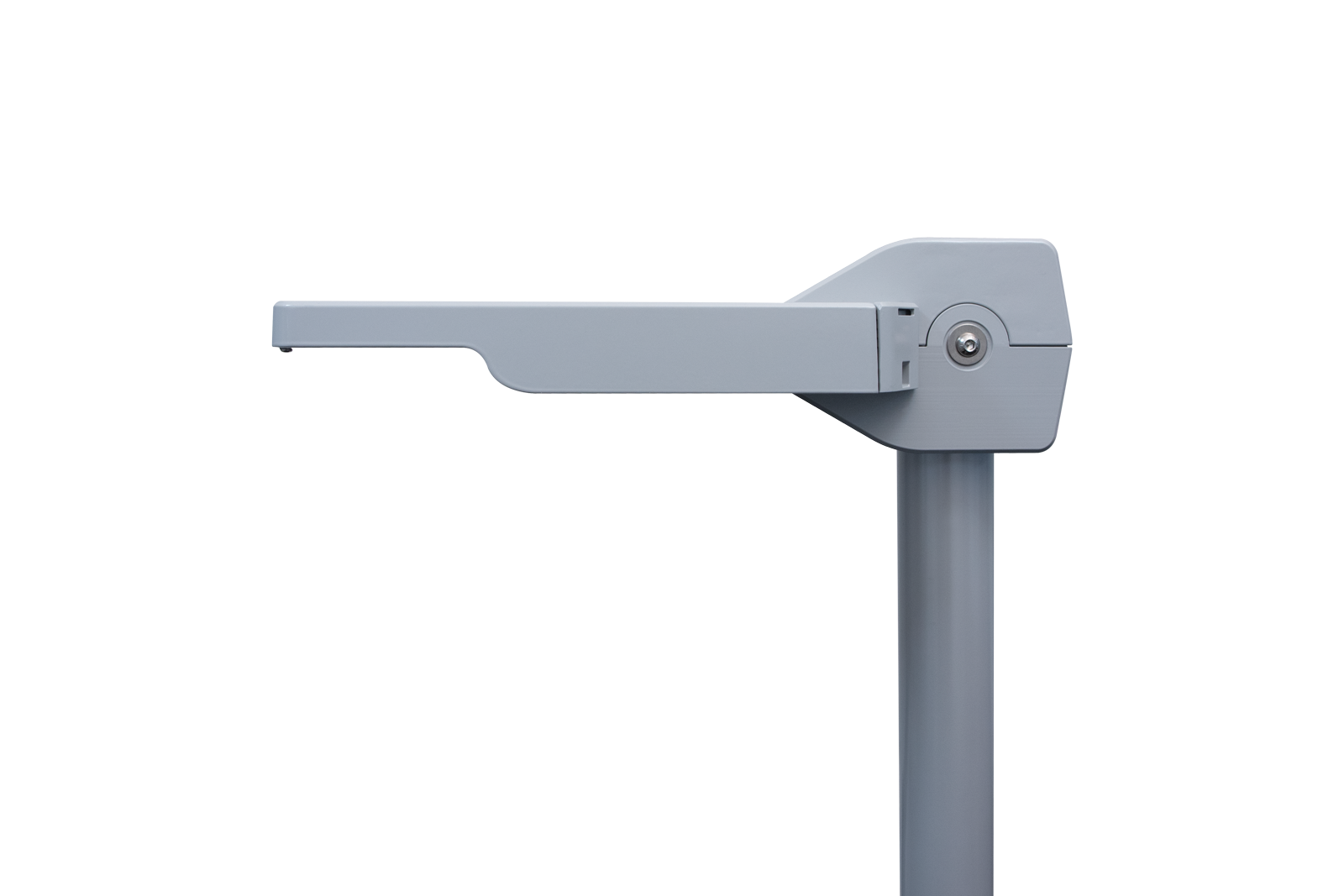

  • Patented MountSet: Universal system providing post top 60mm or 76mm / side entry 34mm, 42mm, 60mm or 76mm mounting
  • Post top inclination of 0°, +5° and +10°
  • Side entry inclination of -10°, -5°, 0°, +5° and +10°
  • Tool-less access (vandal-proof fixings optional)
  • UMSUG codes available for full product range

Range Overview

Aspect Gen2 – 32 LED Aspect Gen2 – 64 LED Aspect Gen2 – 96 LED Aspect Gen2 – 128 LED
System Power 37-75W 60-132W 89-199W 154-307W
Road Optics
Area Optics
LED CCT PC-Amber*, 2200K, 2700K, 3000K, 4000K (or 5700K Zebra only)
Lumen Output Up to 11,825lm Up to 21,830lm Up to 32,872lm Up to 48,945lm
LED CRI >70 (*>48)

Shield Options – Aspect Gen2 – 32/64/96/128 LED

Front (All Versions) 83KIT73648
Rear (All Versions) 83KIT73649
Side (32 LED Version) 83KIT73650
Side (64 LED Version) 83KIT73651
Side (96 LED Version) 83KIT73652
Side (128 LED Version) 83KIT73653

Electrical Characteristics

Aspect Gen2 – 32 LED Aspect Gen2 – 64 LED Aspect Gen2 – 96 LED Aspect Gen2 – 128 LED
System Power 37-75W 60-132W 89-199W 154-307W
LED CCT PC-Amber*, 2200K, 2700K, 3000K, 4000K (or 5700K Zebra only)
LED CRI >70 (*>48)
Lumen Output Up to 11,825lm Up to 21,830lm Up to 32,872lm Up to 48,945lm
Lumen Maintenance Projected L90 after 100,000 hours
Drive Current 775mA 700mA 700mA 800mA
Driver Output Constant current output with AM dimming
Power Factor
(Full Load/Half Load)		 0.95/0.90
Operational Voltage 220-240VAC rms
Operating Frequency 50/60Hz
Inrush Current
(Apk/50%-µS)		 42A/238µS 80A/250µS 80A/225µS 80A/250µS
Running Current
(Max)		 329mA 579mA 872mA 1,346mA
Surge Protection
(COM/DIF)		 10kV/6kV
Additional Surge Protection
(On Request)		 10kV/10kA
Lighting Controls Options NEMA 7, Zhaga Book 18 (SR) socket (top and/or bottom), Photocell, Lumi-LinQ, PND and CMS compatible
Dimming Protocols DALI-2 (parts 251 & 253), D4i (optional)

Mechanical Characteristics

Housing Material Marine grade high pressure die cast LM6 aluminium components
Cover Material Toughened ultra efficient safety glass cover (polycarbonate cover optional)
Lens Material PMMA and polycarbonate options
Housing Finish Chromate free pre-treatment, polyester powder coat, light grey (RAL9006), dark grey (RAL7022), black (RAL9005) or bespoke colours on request
Ingress Protection Rating IP66
Weight 8.1kg (32 LED version)

9.4kg (64 LED version)

10.8kg (96 LED version)

12.5kg (128 LED version)
Wind Area 0.1233m² (32 LED version)

0.1505m² (64 LED version)

0.1783m² (96 LED version)

0.2058m² (128 LED version)
Impact Resistance Rating IK08 (IK10 with polycarbonate cover)
Mounting Methods Post top 60mm or 76mm
Side entry 34mm, 42mm, 60mm or 76mm
Mounting Inclination -10°, -5°, 0°, 5° & 10°
Photometric Centre 398.5mm-550.9mm (to centre of PCB)
